300KW型彈簧圓錐破碎機畢業設計含全套CAD圖紙
- 文件介紹：
- 該文件為 zip 格式（源文件可編輯），下載需要
20 積分
-

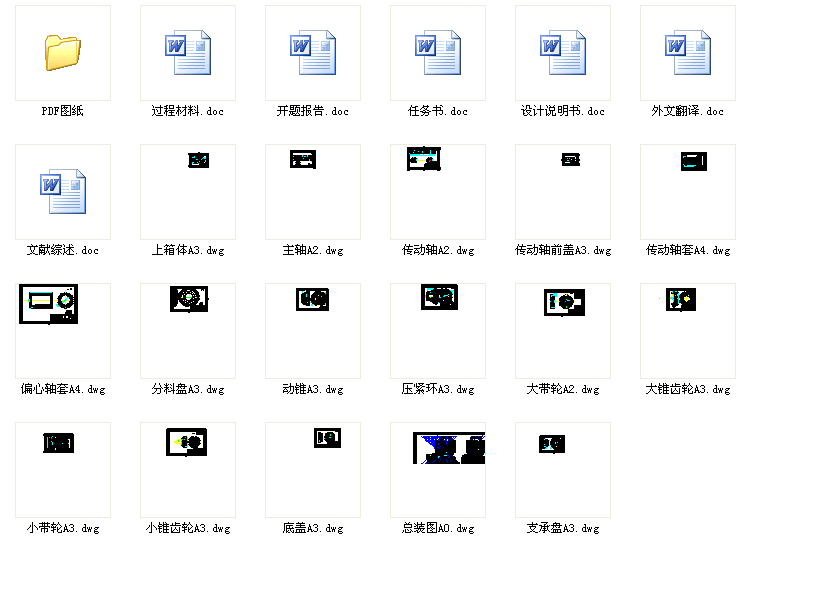

- 300KW型彈簧圓錐破碎機畢業設計含全套CAD圖紙
300KW型彈簧圓錐破碎機結構設計
摘要：本次畢業設計主要完成對300KW彈簧圓錐破碎機的部分結構的設計和完善。首先對彈簧圓錐破碎機做了簡單的介紹；接著分析了彈簧圓錐破碎機選型原則及計算方法；然后根據這些設計準則與計算選型方法按照給定參數要求進行選型設計；接著對所設計的裝配機各主要零部件進行了校核。彈簧圓錐破碎機由六個主要部件組成：機架部分、傳動軸部分、球面軸承部分、動錐部分、調整環部分。最后，提出了彈簧圓錐破碎機設計過程中存在的不足，以便于今后設計的改進。本次彈簧圓錐破碎機的設計代表了設計的一般過程，對今后的選型設計工作有一定的參考價值。
關鍵詞：彈簧，圓錐，破碎機，傳動機構
Structure Design of 300KW Spring Cone Crusher
Abstract: The graduation project is mainly to complete the design and improvement of 300KW spring cone crusher part of the structure. Firstly, spring cone crusher machine is introduced. Secondly, the spring cone crusher automated assembly machine selection principle and method of calculation are analyzed. Then according to these design principles and calculation methods in accordance with the requirements of the given parameters of type design. Then on the design of the major components assembly machine was checked. Spring cone crusher consists of six major components: frame part, drive shaft parts, spherical bearing parts, moving cone section, part of the adjustment ring. Finally, the lack of spring cone crusher design process exists to facilitate future design improvements. The spring cone crusher design represents the general process of designed, selection of design work for the future has a certain reference value.
Key words: Spring; cone; crusher; transmission
...
