CA6900長途客車乘客門及艙門設計
- 文件介紹：

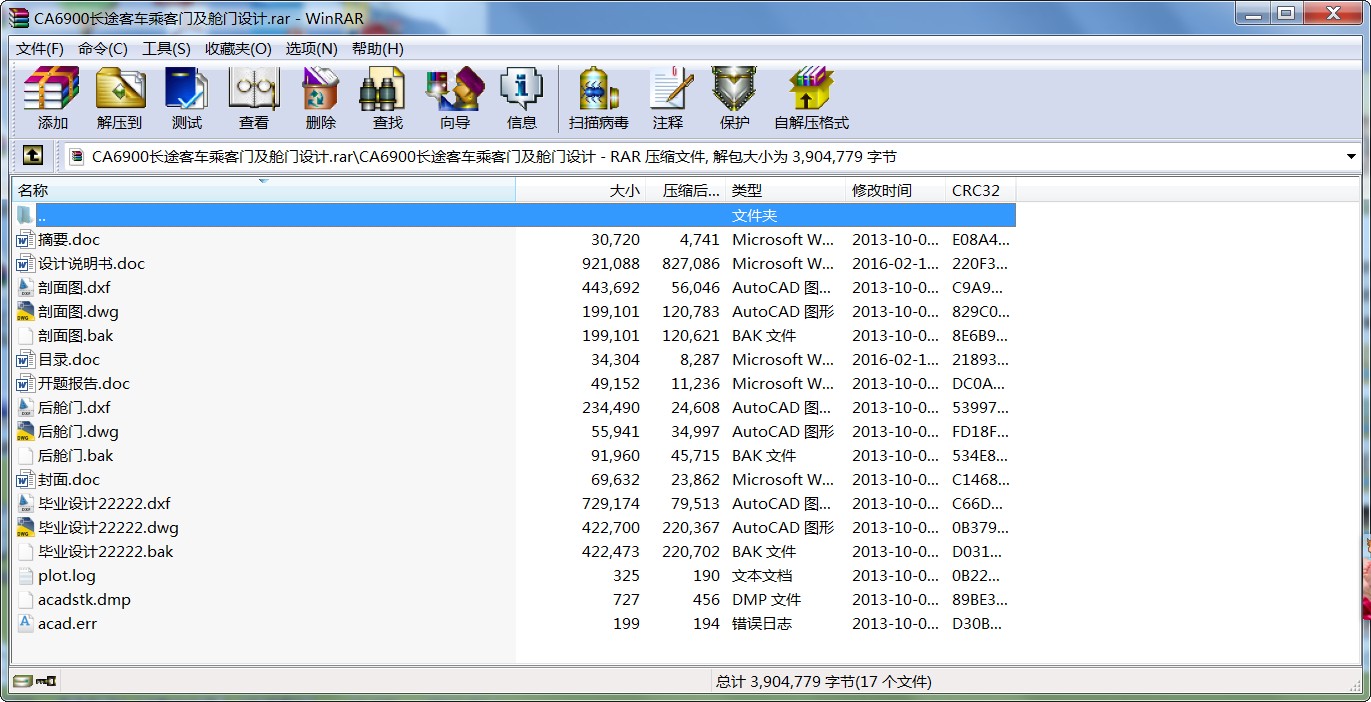

- 該文件為 rar 格式（源文件可編輯），下載需要
20 積分
-
- CA6900長途客車乘客門及艙門設計.rar
摘要
乘客門是客車的重要組成部分，是乘客上下車的通道，對客車的整體造型也起著重要的協調作用。隨著我國汽車技術的發展，在長途車中我國汽車廠家已普遍采用了優勢突出的外擺式乘客門。外擺式乘客門是一種無軌道的移出車門，門扇靠回轉臂支撐，依靠轉軸的轉動帶動門扇作近似于平行移動的運動，因而也稱為平移門。
本文兼容外擺式乘客門和發動機艙門的設計。分析了外擺式乘客門和發動機艙門的工作原理以及其各部分的尺寸和一些主要零件的選型和安裝。討論了國內外客車附件工業的發展?fàn)顩r的比較。本次設計應用了CAD進行設計外擺式乘客門和發動機艙門.
關鍵詞：外擺門，發動機艙門，CAD。
Abstract
Passenger door is the important department of the coach, is the route way for the passengers. And assort with the whole coach sculpt. With the development of our vehicle technology, the domestic vehicle factory has already adopted the outer turning service door. It has much more predominance. The outer turning service door is the door which has no tram road and parallel move out of the coach, the door was supported by the circumrotate arm. By the rotation of the circumrotate axes, the door is moving close to the parallel move. Thus this door is called translation door.
This paper introduces the design of the outer turning service door and the Engine cabin door. Analyzed the structure and operating principles of the outer turning service door and the Engine cabin door, determined the size of its parts and major components of the models and installation. Discussed the development of the vehicle annex industry. Application in this design the CAD software create in the outer turning service door and the Engine cabin door.
Key word: the outer turning service door, the Engine cabin door,CAD
目 錄
第一章 概論
1.1乘客門的類型……………………………………………………1
1.1.1乘客門的主要結構形式 ………………………………………1
1.2外擺門的優缺點……………………………………………………1
1.2 CAD技術的發展……………………………………………………2
第二章 國內外發展情況比較
2.1客車附件工業的特點…………………………………………3
2.2 目前國內客車車身附件的狀況及與國外發達國家之間
的差距………………………………………………………………3
2.3對客車附件的發展建議……………………………………5
第三章 外擺式乘客門設計
3.1 外擺式乘客門的結構…………………………………………7
3.2乘客門泵選型……………………………………………………9
3.21門泵安裝與調試………………………………………………11
3.3運動機構設計及校核……………………………………………12
3.3.1用作圖法確定車門的運動軌跡…………………………12
3.3.2運動校核……………………………………………………15
3.4 外擺門的密封………………………………………………15
3.5外擺式乘客門的制作
3.5.1制作工藝………………………………………………………16
3.5.2預裝與調試……………………………………………………17
3.6車門玻璃的安裝…………………………………………17
第四章 發動機艙門設計
4.1艙門結構組成………………………………………………18
4.2零部件選型
4.2.1鎖具的選擇………………………………………………18
4.2.2氣彈簧支撐機構……………………………………………19
4.3鉸鏈設計………………………………………………21
設計評價分析…………………………………………26
致 謝………………………………………………27
參考文獻………………………………………………28
...
