旋耕滅茬機總體結構設計

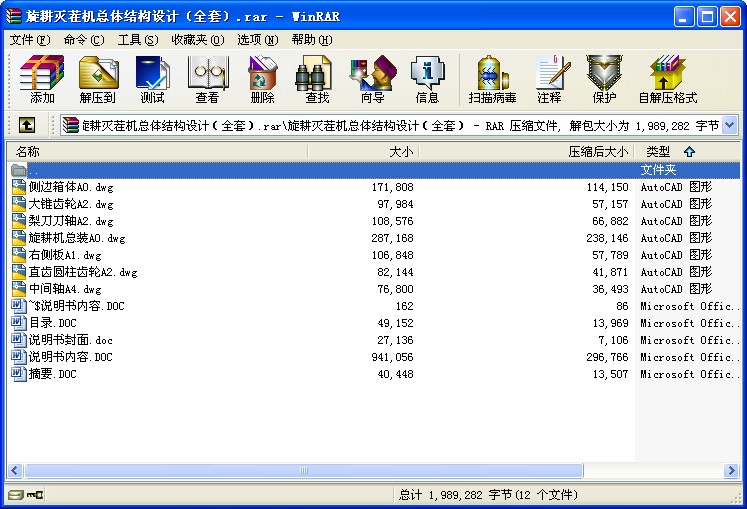

- 文件介紹：
- 該文件為 rar 格式（源文件可編輯），下載需要
20 積分
-
- 旋耕滅茬機總體結構設計
摘 要
機械旋耕滅茬技術是對傳統的耕作技術——機械翻、耙、壓耕作模式的重大改革。它是利用旋耕機、滅茬機、聯合整地機與其配套的拖拉機所進行的一次性耕地作業技術。現在對于地上秸稈的還田技術已經趨于成熟。但對于根茬，尤其是對玉米根茬的處理。依然是困擾廣大農民的一大難題。
旋耕滅茬機總體及側邊傳動裝置設計，來源于生產實際。本設計主要是在普通臥式旋耕機的基礎上改進設計,使之既能旋耕又能滅薦，以實現一機多用。設計的主要內容為：總體方案從確定、滅茬狀態總裝配圖，設計側邊或中間齒輪傳動裝置及刀輥軸。
通過改進設計，增加刀輥軸的轉速和轉向。在工作時，通過適當?shù)牟鹦逗透难b，就可實現不同功能的作業，以達到一機多能的目的。旋耕滅茬積及總體側邊轉動裝置的設計解決了現有旋耕機只能旋耕不能滅茬而滅茬機又只能滅茬不能旋耕的問題。
關鍵詞：滅茬機；旋耕機；側邊傳動裝置；刀輥軸；壓耕
ABSTRACT
Rotary Tillage Stubble Cleaner .The traditional farming, machinery, farming, the double major reform mode. It is MieCha machine, using rototiller, matched machine joint preparation of a one-time tractor cultivated technique. Now the straw returning to earth have sophisticated technology. But for the root, especially for the treatment of corn crop root. Farmers are still a problem
Design subject rotary tillage stubble cleaner overall for Model and transmission device design by the side, stem from production reality. Is it is it design to improve on the basis of ordinary horizontal rotary tillage machine mainly to design originally, make their can rotary tillage can is it recommend to kill also , in order to realize one machine multi-purpose. The main content designed is: Overall conceptual design , drawing the state job general drawing of the stubble-cleaning , designing by the side or middle gear system and one one hundred sheets of rollers axle .
Design through improving, increase the rotational speed of the axle of one one hundred sheets of rollers and change direction. While working, through proper dismantlement and repacking , can realize the homework of different functions , in order to be up to a machine multi-functional purpose .
Can only solve rotary tillage not existing of rotary tillage of stubble-cleaning of realizations of subject but stubble cleaner can only stubble-cleaning can problem of rotary tillage. This subject is novel and practical, there is greater improvement technically , have very great market prospects.
Keywords: Rotary Tillage； Stubble Cleaner ; Transmission Device By The Side; Axle Of One Hundred Sheets Of Rollers；Pressure Tillage.
